- Rotary Vane Pump/Motor Assembly Series 2- 102B080R12XX828

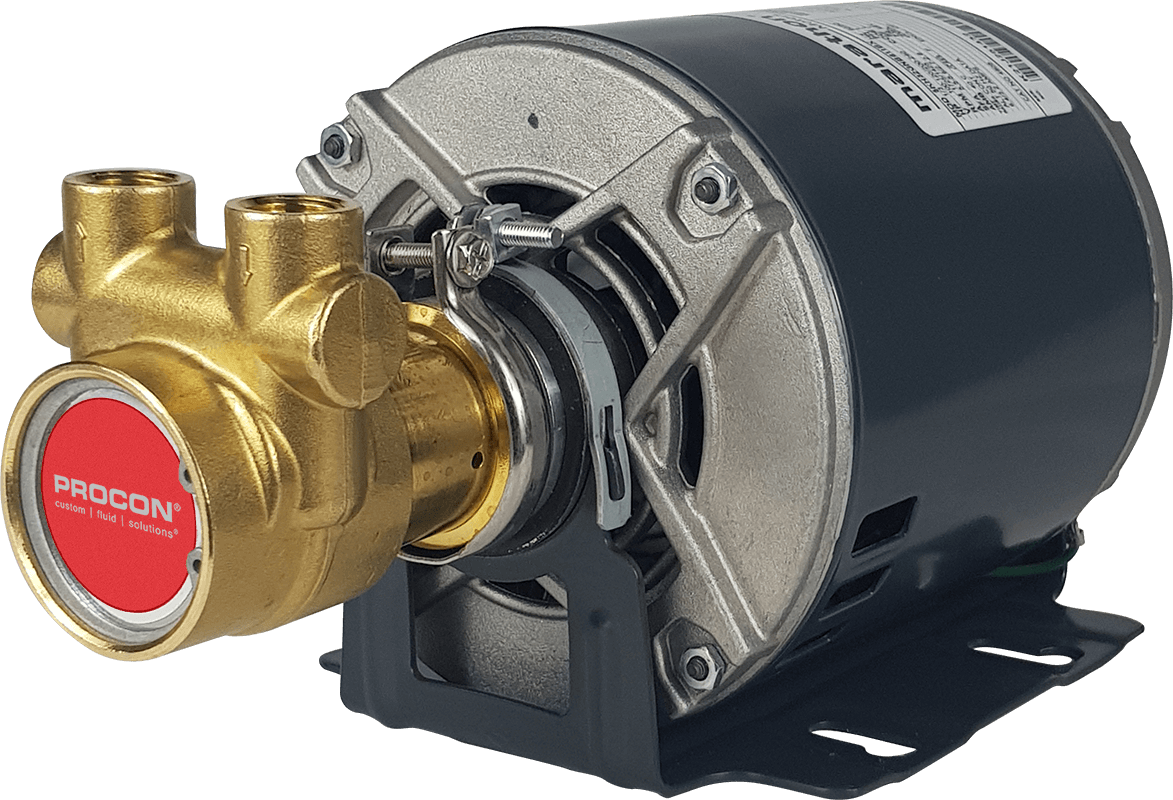

Rotary Vane Pump/Motor Assembly Series 2- 102B080R12XX828
Product Type: Other Industries
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Consult with a PROCON representative for high temperature applications over 194°F (90°C)
80GPH
240LPH
250psi
Series 2
Brass
Clamp-On
NPT 3/8"
Non Balances Ceramic/Carbon
-4°F
350°F
100cP
2400RPM
AC
PROCON
Special Clearance for High Temperature Applications
No Cooling
Slotted With Bronze Coupling 1143
3.3ft
6pH
50/60Hz
84138100
Carbon
250psi
60dB(a)
100psi
5000ppm
1000RPM
5.6A
2.8A
IMB3
B
Clamp-On
4
1725RPM
Split Phase
200-240V
Single Phase
0.34
250W
Pump/Motor Assembly
102B080R12XX828
STD Rotary Vane Pump
V2A
220f07de-6d02-4d3a-9f14-bd949cd0afccF1001.pdf
17.2lb (7.8Kg)
IP20
Clockwise
1425RPM
Piece
No Relief Valve
Znode Multifront
100-120V
6.6ft
- Details
- Features
- Applications
- Documents
Flow Rate GPH
80GPH
Flow Rate LPH
240LPH
System Pressure (max)
250psi
Series
Series 2
Material
Brass
Mount
Clamp-On
Standard Ports
NPT 3/8"
Seal Type
Non Balances Ceramic/Carbon
Min Fluid Temperature
-4°F
Max Fluid Temperature
350°F
Max Fluid Viscocity
100cP
Max Speed
2400RPM
Motor AC/DC
AC
Brand
PROCON
Internal Component Clearance High Temp Applications
Special Clearance for High Temperature Applications
Motor Cooling
No Cooling
Drive Configuration
Slotted With Bronze Coupling 1143
Dry Suction Lift
3.3ft
Fluid Acidity
6pH
Motor Hertz
50/60Hz
HSS Commodity Code
84138100
Internal Component Material
Carbon
Max Discharge Pressure
250psi
Max Sound Level
60dB(a)
Max Static Pressure PSI
100psi
Maximum Total Dissolved Solids (TDS)
5000ppm
Min Speed
1000RPM
Motor Current 1
5.6A
Motor Current 2
2.8A
Motor Design
IMB3
Motor Insulation
B
Motor Mount Type
Clamp-On
Motor Poles
4
Motor Speed 2
1725RPM
Motor Type
Split Phase
Motor Voltage 2
200-240V
Motor Phase
Single Phase
Motor Power 2
0.34
Motor Power 1
250W
Product Classification
Pump/Motor Assembly
Product Code
102B080R12XX828
Product Family
STD Rotary Vane Pump
Product Family Sub Group
V2A
Product Performance
220f07de-6d02-4d3a-9f14-bd949cd0afccF1001.pdf
Product Weight
17.2lb (7.8Kg)
Motor Protection
IP20
Rotation
Clockwise
Motor Speed 1
1425RPM
UOM
Piece
Valve Configuration
No Relief Valve
Vendor
Znode Multifront
Motor Voltage 1
100-120V
Wet Suction Lift
6.6ft
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Consult with a PROCON representative for high temperature applications over 194°F (90°C)
