- Rotary Vane Pump Series 3- 103A100G32XX

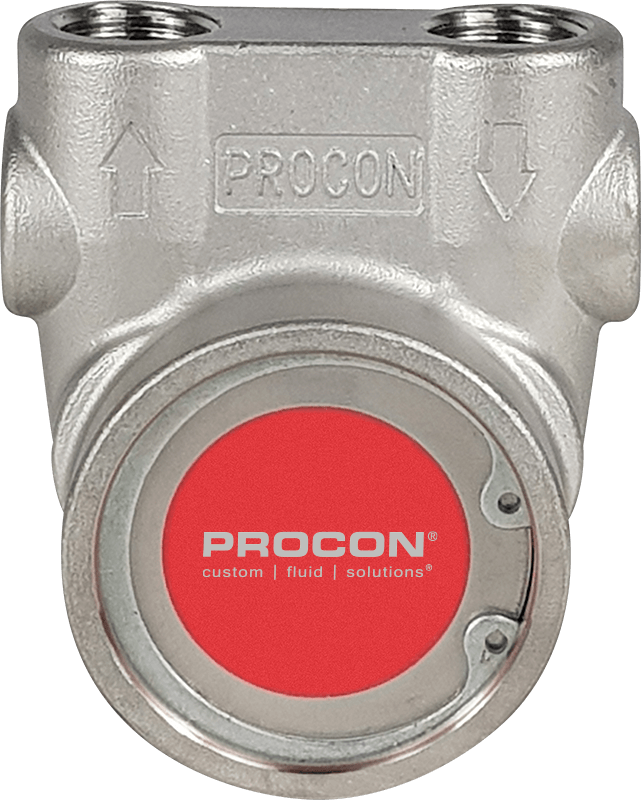

Rotary Vane Pump Series 3- 103A100G32XX
Product Type: Other Industries
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Consult with a PROCON representative for high temperature applications over 194°F (90°C)
² Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)
100GPH
300LPH
250psi
Series 3
Stainless Steel
Clamp-On
NPT 3/8"
Non Balances Ceramic/Carbon
-4°F
294°F
100cP
2400RPM
PROCON
Special Clearance for High Temperature Applications
Double Flat
3.3ft
2pH
84138100
Carbon
250psi
60dB(a)
100psi
0.42hp (313W)
1000RPM
Pump
103A100G32XX
STD Rotary Vane Pump
V3
220f07de-6d02-4d3a-9f14-bd949cd0afccF1001.pdf
2.3lb (1.04Kg)
Clockwise
Piece
No Relief Valve
Znode Multifront
6.6ft
- Details
- Features
- Applications
- Documents
Flow Rate GPH
100GPH
Flow Rate LPH
300LPH
System Pressure (max)
250psi
Series
Series 3
Material
Stainless Steel
Mount
Clamp-On
Standard Ports
NPT 3/8"
Seal Type
Non Balances Ceramic/Carbon
Min Fluid Temperature
-4°F
Max Fluid Temperature
294°F
Max Fluid Viscocity
100cP
Max Speed
2400RPM
Brand
PROCON
Internal Component Clearance High Temp Applications
Special Clearance for High Temperature Applications
Drive Configuration
Double Flat
Dry Suction Lift
3.3ft
Fluid Acidity
2pH
HSS Commodity Code
84138100
Internal Component Material
Carbon
Max Discharge Pressure
250psi
Max Sound Level
60dB(a)
Max Static Pressure PSI
100psi
Max Mechanical Power Requirement
0.42hp (313W)
Min Speed
1000RPM
Product Classification
Pump
Product Code
103A100G32XX
Product Family
STD Rotary Vane Pump
Product Family Sub Group
V3
Product Performance
220f07de-6d02-4d3a-9f14-bd949cd0afccF1001.pdf
Product Weight
2.3lb (1.04Kg)
Rotation
Clockwise
UOM
Piece
Valve Configuration
No Relief Valve
Vendor
Znode Multifront
Wet Suction Lift
6.6ft
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Consult with a PROCON representative for high temperature applications over 194°F (90°C)
² Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)
